Overall view of the capabilities in ONSHORE / OFFSHORE Sector

• Complete solutions-Onshore and Offshore sector
• Turnkey Packages and Skids
• Conceptual Design
• Front end engineering & Design
• FPSO Concept development

Process Design

BlueGas bv can provide in consortium with affiliates/associates complete process solutions for many industries, from conceptual design through FEED studies, to process and mechanical design and fabrication. Concept evaluation involving assessment of alternative production scenarios and processing schemes for an oil and gas development.
Using novel approaches, success in increasing export liquid production by 6 per cent within pipeline TVP limitations.

Services

• Retrofit / De-bottlenecking of Existing Process Equipment
• Feed and conceptual Design Studies, including Evaluation of Well Specific production profiles
• Process Trouble-shooting / Hydrocyclone
• Safety case preparation and numerous HAZOPs and HAZIDs

Process modules / packages/products

• • Fully Commissioned process Modules for Oil / Gas Production Industry
  • Feasibility studies for retrofit water injection facilities followed by execution of FEED.
  • Separators , Fuel gas Conditioning Packages
  • Condensate treatment (dehydration, solids removal and water washing)
  • Produced water treatment packages to achieve < 5 ppm oil in water
  • Fuel / Oil treatment & Transfer (dehydration, solids removal and pumping systems)
  • Demisters & scrubbers(interstage compression, turbine fuel systems and liquid removal)
  • Water treatment and injection packages, including filtration, deaeration and chemical dosing
  • Gas dehydration packages
  • Metering packages – custody transfer/fiscal metering (including multiphase metering)
  • Helicopter refuelling system .




Blue Gas bv has head office in The Netherlands and global business operation through associated offices internationally.

Core competence in special projects pertaining to the following key and significant areas of upstream oil/gas:

a. Flare gas recovery and CO2 reduction
b. Upgrade of Topsides Packages
c. Sand handling/ Sand Management in upstream oil/gas
d. Upgrade of Fiscal Metering
e. RAM analysis

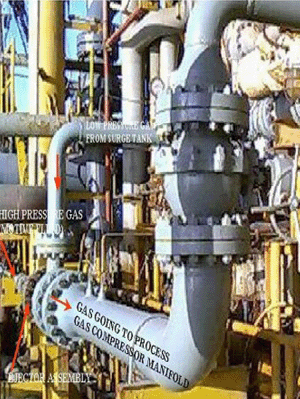

Flare Gas Recovery & CO2 reduction

The first Liquid Seal was installed at one Platform in 2002 and subsequently at many other platforms in offshore.

From early 2002, the Liquid Seal with Gas Recovery system are working satisfactorily without any problem or without compromising safety.

The recovered low pressure rich gas at one Platform was estimated Zero Flaring to be about 120,000 Cub. Meter/Day which was put-back to the Main Gas Compressors for Exporting to Onshore Terminal for further processing with total gas.



Value Proposition

BlueGas bv has done concept development for GTL (gas to liquid) production by recovering flare gas from fixed platforms & FPSOs utilizing the utilities , offshore accommodation module etc of the operating facility. In several cases the concept is GTL production (with flare gas recovery) based on stand alone barges for offshore and modular systems for onshore.

Upgrade of Topsides Packages

The operating facilities may require upgrade of existing topsides facilities because of :
• Aging factor
• Reservoirs depleting
• Lower arrival pressures/Lower flow rates
Topsides facilities may require upgrade/modernization of :
• Multiphase separators – internals based on optimum residence time of the separators
• Troubleshooting of BS&W (< 0.5%)
• TVP improvements of stabilized crude
• Improvements in the Suction scrubbers of Gas compressors
• TEG package improvements – reboiler etc to improve the dew points

Note: BlueGas bv can carry out the study to recommend the above upgrades.

Sand handling/ Sand Management in upstream oil/gas

Sand Estimates

• Related process engineering
• Particle sizes and annual loadings predictions
• Facilities description for Coarse and Fine Sand

Sand Monitoring

(a) For SURF and topsides/surface facilities
(b) Sand monitors location and control system integration

Additional systems

• To work the specific project concept with specialists for online removal of sands from Separators
• Mitigation methods for Sand accumulation in existing and new planned facilities
• Removal of Sands up to a few hundred tons/year based in (1) above specialized services

Upgrade of Fiscal Metering

• Conventionally several upstream facilities might have custody transfer metering.
• In the changed business environment there may be more partners in oil/gas facilities which may require upgrade of existing Oil/Gas metering systems
• Analyzer system integrated with metering can also work out higher (non-permissible) CO2 etc for the levies/extra costs on the project operations.
• Upgrade of existing metering facilities with better functionalities

RAM Analysis

Reliability, Availability & Maintainability is one of the key performance figures of upstream facilities.
The criteria is the rated design vs actually achievable.
BlueGas wants to discuss in detail as this is being vast subject and can also review the sparing philosophies, efficiency of system etc.

Note: BlueGas in alliance can carry out such studies

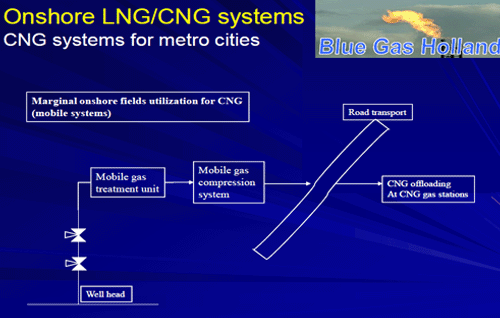

There are enormous numbers of wells which are marginal and have low operating life. Mobile type CNG production systems are ideally suited for exploiting gas in form of CNG/LNG which can substantially fulfill the shortfall of CNG/Gas supply to the point of use/consumers filling stations.

Mobile systems are trailer mounted and once field life is over these systems can be mobilized to other potential locations of production.

The knowledge and added value of BlueGas bv have the unique combination of information and communication (ICT) and process knowledge. Our specialists develop both high tech office applications and industrial process applications for the operational use.

The activities of BlueGas bv System Integration are mainly projects in the Petrochemical, Oil and Gas Industry and supply the following systems :

• Plant Information Management System (PI)
• Metering & loading Control system (FISMET)
• Analyser Management Systems (AMAS)
• Material Database System (MDS)
• Identification & Security System (Nexcentry)
